Product details

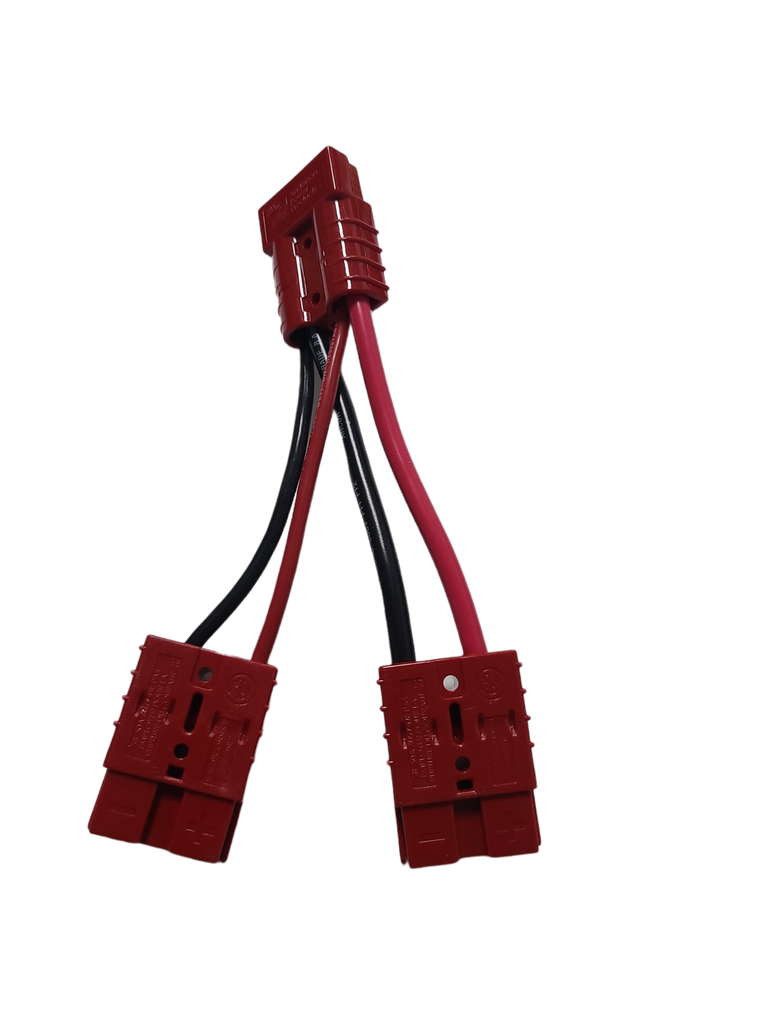

The CE12VSPLT turns one Connect-Ease battery connection into multiple plug-and-play outputs. Add a charger, accessory harness or second device without stacking terminals on your battery posts.
Stacking ring terminals on a battery post invites corrosion, loose connections and blown fuses at the worst time. A Connect-Ease hub gives every accessory its own plug-and-play lead off one clean battery connection, so you can add, remove or troubleshoot devices without touching the battery.
Compatible electronics and accessories: Fish finders, GPS, VHF radios, bilge pumps, livewell pumps, LED lighting, USB chargers and shallow-water anchors.
System voltage: 12V. Recommended batteries: 12V deep-cycle AGM, flooded lead-acid or 12.8V LiFePO4 lithium (Group 24/27/31, 50–120Ah). Amperage and protection: Do not exceed the rating of the upstream connection; fuse downstream devices.
Key features
- Splits one connection into multiple outputs
- Plug-and-play Connect-Ease connectors
- No extra terminals on battery posts
- Marine-grade wire
- Lithium compatible
Compatibility & specs
| Compatible fish finders, graphs & FFS | Fish finders, GPS, VHF radios, bilge pumps, livewell pumps, LED lighting, USB chargers and shallow-water anchors |
| Recommended voltage | 12V |
| Amperage / fuse / breaker | Do not exceed the rating of the upstream connection; fuse downstream devices |
| Battery types | 12V deep-cycle AGM, flooded lead-acid or 12.8V LiFePO4 lithium (Group 24/27/31, 50–120Ah) |
Specs come from the product listing. Always follow your trolling motor or electronics maker's manual for final fuse and breaker sizing.
Frequently asked questions
Common questions about the CE12VSPLT.
Adding a charger, accessory kit or second device to an existing Connect-Ease battery connection.
No, but total current on the splitter must stay within the upstream connection's rating.
