36V Trolling Motor Connection Kit — Series Battery Connection Without On-Board Charging

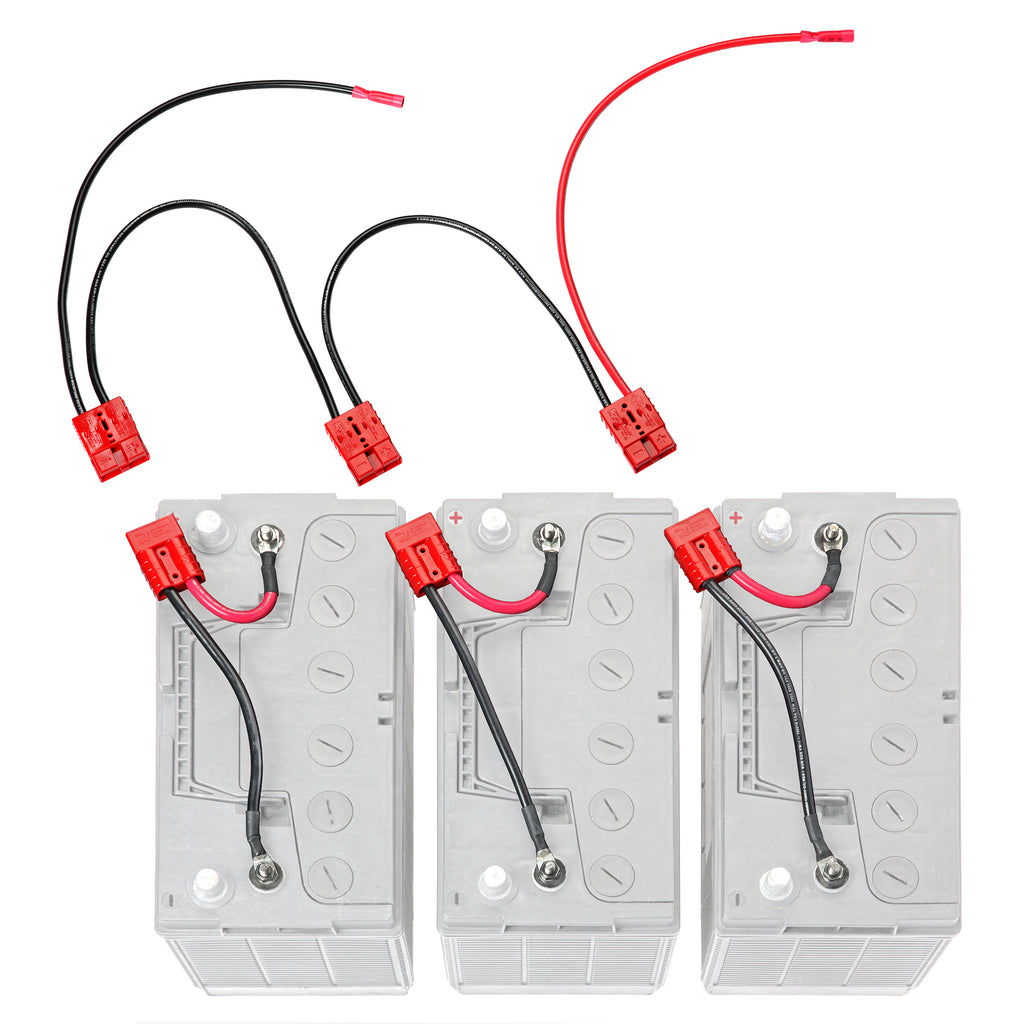

The RCE36VBK series-wires three 12V batteries into a clean 36V system without a single loose jumper. Ideal for boats that charge off-board, it lets you disconnect and remove any battery in seconds using Connect-Ease plug-and-play connectors.

Connect-Ease's patented, self-cleaning, positive-lock connectors replace wing nuts and stacked ring terminals at the battery. Install once and every connection after that is plug-and-play — no tools, no crossed wires, no corroded posts, and batteries come out in seconds for charging or winter storage.

Compatible trolling motors and vehicles: Minn Kota Ultrex, Ulterra, Terrova and Riptide (36V / 101–112 lb, incl. QUEST models); Garmin Force (36V); Lowrance Ghost (36V); MotorGuide Tour Pro and Xi5 (36V).

System voltage: 36V (three 12V in series). Recommended batteries: Three 12V AGM/flooded/LiFePO4 batteries in series, or one 36V single-case lithium (60–120Ah). Amperage and protection: 36V motors (101–112 lb) draw up to ~52A at full throttle. Protect with a 60A resettable breaker.
