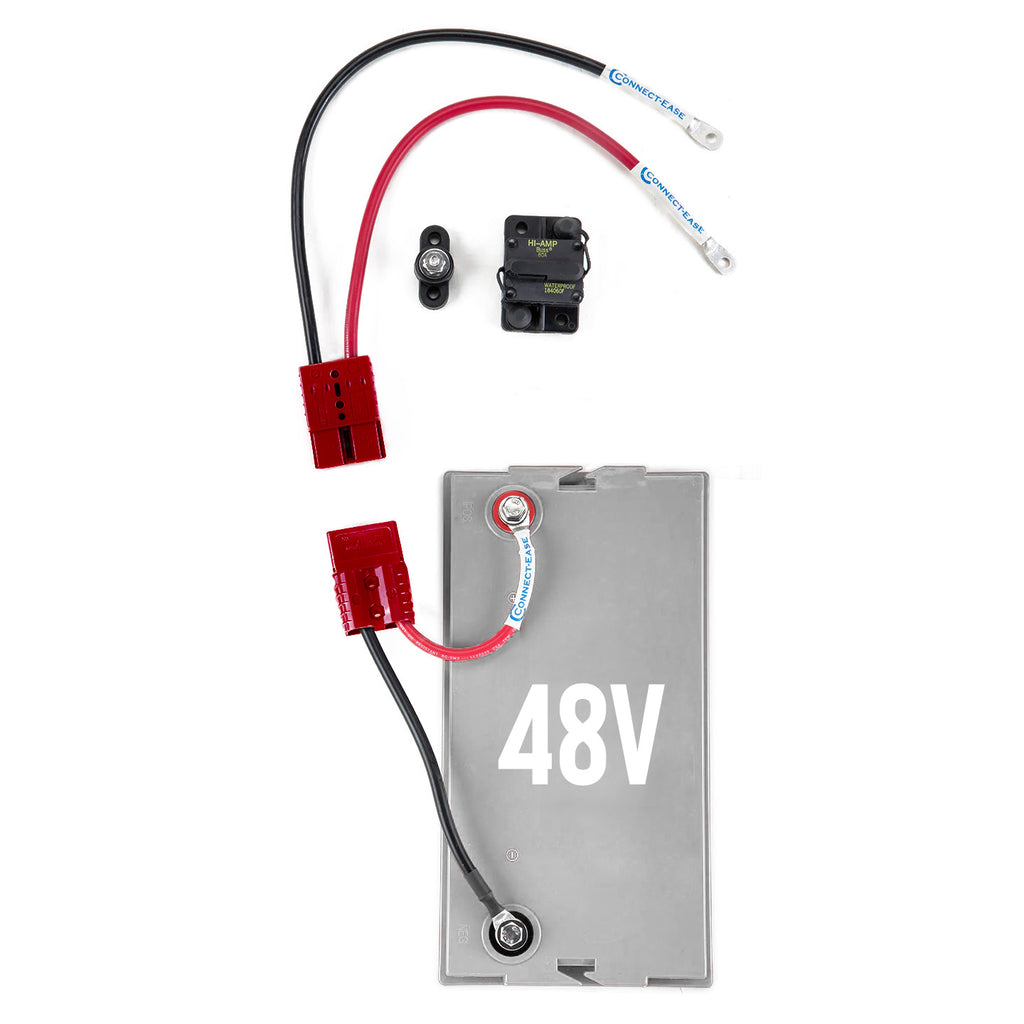

48V DRIVER Connection System for Single-Case Lithium Batteries

Product details

The 48V DRIVER brings Connect-Ease plug-and-play performance to lighter, more powerful 48V single-case lithium batteries. Six-gauge wire, connectors rated to 1,200 amps and an onboard charging connection make install, charging and removal fast — and it doubles as an electric golf cart connection. The grey connector mates with 48V Dakota Lithium charger leads.

Connect-Ease's patented, self-cleaning, positive-lock connectors replace wing nuts and stacked ring terminals at the battery. Install once and every connection after that is plug-and-play — the system wires your batteries correctly every time, and integrated charging leads keep your on-board charger connected while you fish, trailer or store the boat.

Compatible trolling motors and vehicles: 48V trolling motors and propulsion systems; also 48V golf carts (Club Car, EZGO, Yamaha) and solar banks.

System voltage: 48V (single-case lithium). Recommended batteries: One 48V single-case LiFePO4 lithium, 60–120Ah (e.g., Dakota Lithium 48V). Amperage and protection: Connectors rated to 1,200A; fuse or breaker to your motor/controller maker's spec.

Key features

• 6-gauge wire for 48V single-case lithium (60–120Ah)
• Connectors rated to 1,200A
• Onboard charging connection — mates with 48V Dakota Lithium charger leads
• Quick removal for charging and theft prevention
• Works with trolling motors, golf carts and solar equipment

Compatibility & specs

Compatible trolling motors / vehicles	48V trolling motors and propulsion systems; also 48V golf carts (Club Car, EZGO, Yamaha) and solar banks
Recommended voltage	48V (single-case lithium)
Amperage / fuse / breaker	Connectors rated to 1,200A; fuse or breaker to your motor/controller maker's spec
Battery types	One 48V single-case LiFePO4 lithium, 60–120Ah (e.g., Dakota Lithium 48V)

Specs come from the product listing. Always follow your trolling motor or electronics maker's manual for final fuse and breaker sizing.
