Product details

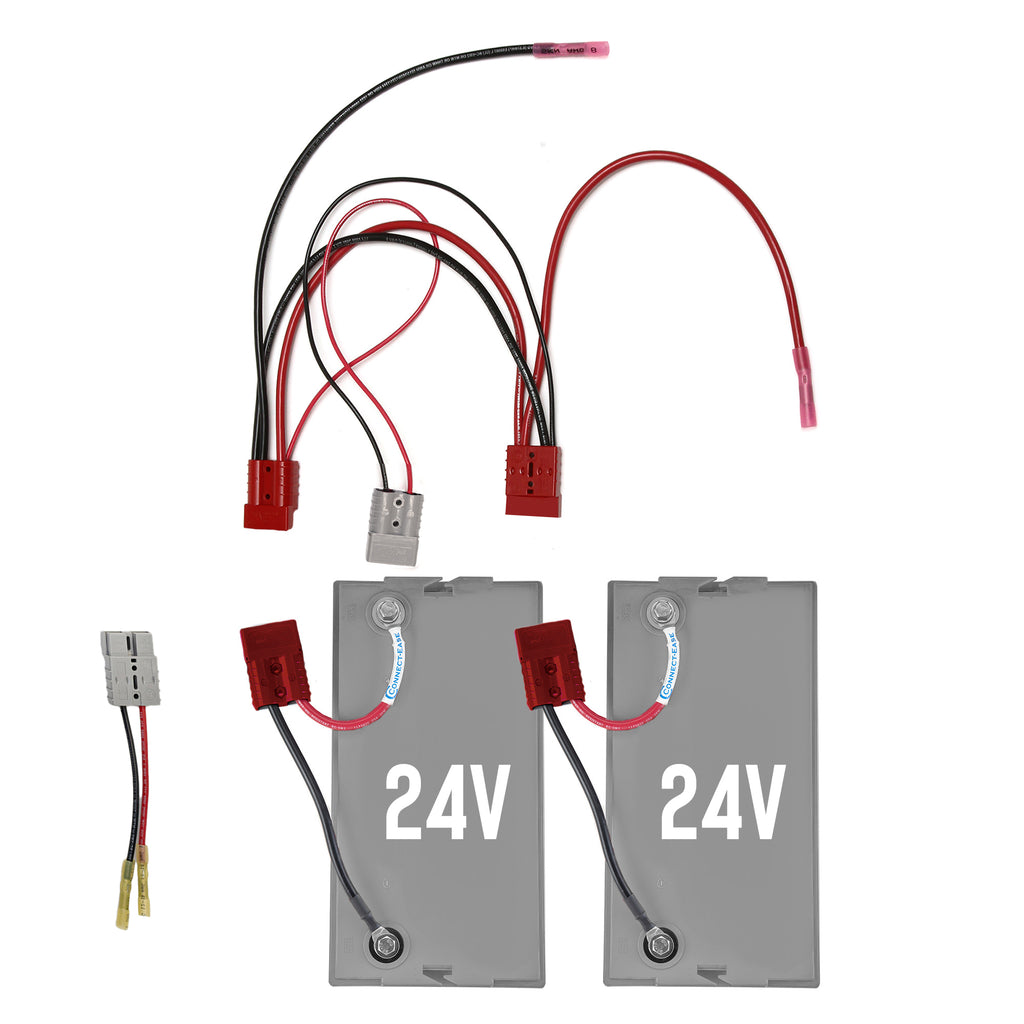

Double Time connects two matching 24V batteries in parallel — positive to positive, negative to negative — to one 24V trolling motor. You keep 24 volts and double the amp-hours, so long tournament days and windy spot-locking sessions don't end early. Charge both batteries with one 24V charger.
Connect-Ease's patented, self-cleaning, positive-lock connectors replace wing nuts and stacked ring terminals at the battery. Install once and every connection after that is plug-and-play — the system wires your batteries correctly every time, and integrated charging leads keep your on-board charger connected while you fish, trailer or store the boat.
Compatible trolling motors and vehicles: Minn Kota Ultrex, Ulterra, Terrova and Riptide (24V / 70–80 lb); Garmin Force (24V); Lowrance Ghost (24V); MotorGuide Tour, X5 and Xi5 (24V); Rhodan 24V.
System voltage: 24V (two 24V batteries in parallel). Recommended batteries: Two matched 24V single-case lithium batteries (same brand, Ah and age) — Dakota Lithium, Amped and others. Amperage and protection: 24V motors (70–80 lb) draw up to ~56A at full throttle. Protect with a 60A resettable breaker. Parallel batteries share the load for longer runtime.
Key features
- Parallel-connects two 24V batteries to one 24V motor
- Doubles amp-hours at the same voltage
- Integrated charging leads — charge both with one 24V charger
- Self-cleaning, positive-lock plug-and-play connectors
- Works alongside Ignite and Pro Series systems; lithium and AGM compatible
Compatibility & specs
| Compatible trolling motors / vehicles | Minn Kota Ultrex, Ulterra, Terrova and Riptide (24V / 70–80 lb); Garmin Force (24V); Lowrance Ghost (24V); MotorGuide Tour, X5 and Xi5 (24V); Rhodan 24V |
| Recommended voltage | 24V (two 24V batteries in parallel) |
| Amperage / fuse / breaker | 24V motors (70–80 lb) draw up to ~56A at full throttle. Protect with a 60A resettable breaker. Parallel batteries share the load for longer runtime |
| Battery types | Two matched 24V single-case lithium batteries (same brand, Ah and age) — Dakota Lithium, Amped and others |
Specs come from the product listing. Always follow your trolling motor or electronics maker's manual for final fuse and breaker sizing.
Frequently asked questions
Common questions about the RCE224VCHK.
Two equal 24V batteries in parallel roughly double your amp-hours, so runtime nearly doubles at the same throttle.
Yes. Use the same brand, capacity and age for balanced charging and discharge.
